EtchON Portable Dot Pin Marking Machine-DPM305

EtchON Portable Dot Pin Marking Machine-DPM305
EtchON Portable Dot Pin Marking Machine-DPM305
Product Code : DPM305
Brand Name : EtchON
Product Description

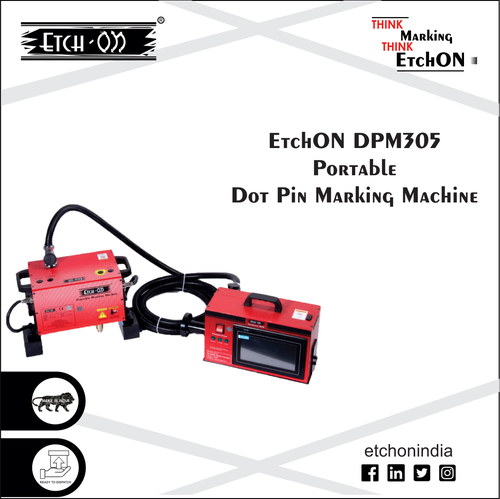

EtchON Portable Dot Pin Marking Machine

EtchON DPM305 ", This model is Touch Screen Controlled PORTABLE Standalone Dot Pin Marking Machine suitable for signing on metal material which size could be larger then the marking head like big pipes. Printing scope 145 x 55 mm(20 Degree Deviation) , E-Magentic base for holding on large size of job. In this machine system controller is connected with the marking pin assembly with 10 meter cable and supports flat marking only. The stylus pin dotting on the surface with high frequency and mark logo , it could mark character, alphanumeric ,date , numbers , series No , VIN codes , graphs etc.

Technical Specification

  • Controller :  Standalone 7" LCD Touch Screen Controller
  • Marking Head : Portable with E-Magnet
  • Marking Speed : 2-3 character/s
  • Marking Depth : 0.1 - 1 mm
  • Marking Scope : 145 x 50 mm / 20 Degrees
  • Pin Hardness : HRC92
  • Work Piece Hardness allowed : <HRC62
  • Power : 110 ~ 230 V / 50~60 Hz
  • APPLICATION : Applicable for Metals & Non Metals
  • WARRANTY : 12  Months Standard  Warranty
